Multicore Automotive Cables

If in doubt which cable size is required always consult a qualified auto electrician

!
EC703

2 Core Auto Cable 2 x 28/0.30 (Flat twin) x 30 mtr

  • Rated at 17.5 amps
  • Conductor cross section 2 x 2.sq mm
  • Overall dimension of cable 7.9mm x 4.8mm
  • Sheath colour Black
  • Core colours Red / Black
  • Manufactured in accordance with BS6862 Part 1 1971, where applicable
  • Plain copper conductors PVC insulated and sheathed
  • 30 mtr Reel
EC900

4 Core Auto Cable

  • 4 Core Auto Cable
  • Black outer
  • Red, green, brown, white inner cores
  • 4 x 9/0.30
  • 4 x 0.65mm sq
  • 5.75 amps
  • QTY. 30mtr reel
EC901

5 Core Auto Cable

  • 5 Core Auto Cable
  • Black outer
  • Green, white, red, yellow, brown inner cores
  • 5 x 9/0.30
  • 5 x 0.65mm sq
  • 5.75 amp
  • QTY. 30mtr reel
EC902

7 Core Auto Cable

  • 7 Core Auto Cable
  • Black outer
  • Red, green, brown, white, blue, black, yellow inner cores
  • 7 x 9/0.30
  • 7 x 0.65mm sq
  • 5.75 amps
  • QTY. 30mtr reel

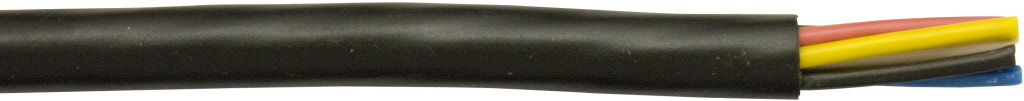

EC903

7 Core Auto Cable

  • 7 Core Auto Cable
  • Black outer
  • Red, green, brown, white, blue, black, yellow inner cores
  • 6 x 14/0.30
  • 1 X 28/ 0.30
  • 6 X 1.00mm sq  8.75 amp
  • 1 x 2.00mm sq  17.5 amps
  • QTY. 30mtr reel
